AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding

Product Categories
SICHUAN VSTAR OPTICAL TECHNOLOGY CO.,LTD
Contact Now

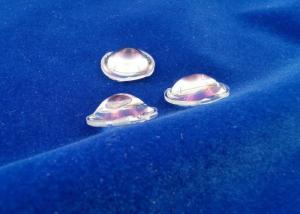

AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding

  • 1
  • 2

Brand Name : VSTAR

Model Number : VS.OP.AS.022

Certification : ROHS/SGS

Place of Origin : Chengdu，China

MOQ : 500-1000PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150000Pcs/order/30days

Delivery Time : Mold Lead Time:25-60 calendar days / Delivery Time:30 working days after received your payment

Packaging Details : Vacuum packaging

Product Name : Aspheric Lens

Material : ZEONEX

Production Mode : Design / Custom Made OEM / ODM

Coating Specification : AR R＜0.5%@375nm-475nm, R＜1.0%@480nm-680nm,

Contact Now

AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding

Quick detai

Design and manufacture of optical plastic aspheric elements. Use high precision injection molding equipment, optical vacuum type dehumidifying drier, remove optical automatic cutting and other modern efficient processing production equipment, processing all kinds of high precision of optical plastic aspherical and diffractive optical lens, the lens in optics, LED photoelectric, 3 c electronic, optical communication, storage media, backlight module, electronic connectors, biotech, medical, aerospace science and technology, thin shell injection, precision electronic components, and other industries to provide the best service to our customers.

Product Parameter

Material ZEONEX
Diameter (mm) Ø16.0
Dimensional Tolerance (mm) ±0.03
Thickness (mm) 8
Thickness Tolerance (mm) ±0.05
Clear Aperture >Ø15
Surface Accuracy (λ) PV<4um
Surface Roughness Ra<0.025um
Surface Quality 60-40
Coating Specification

R＜0.5%@375nm-475nm,

R＜1.0%@480nm-680nm,
Coating AR
ROHS Compliant

Products introduction:All kinds of optical sensing devices.

Application area:Public places,Metro,high-speed railway,industry auto doors,etc.

AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding

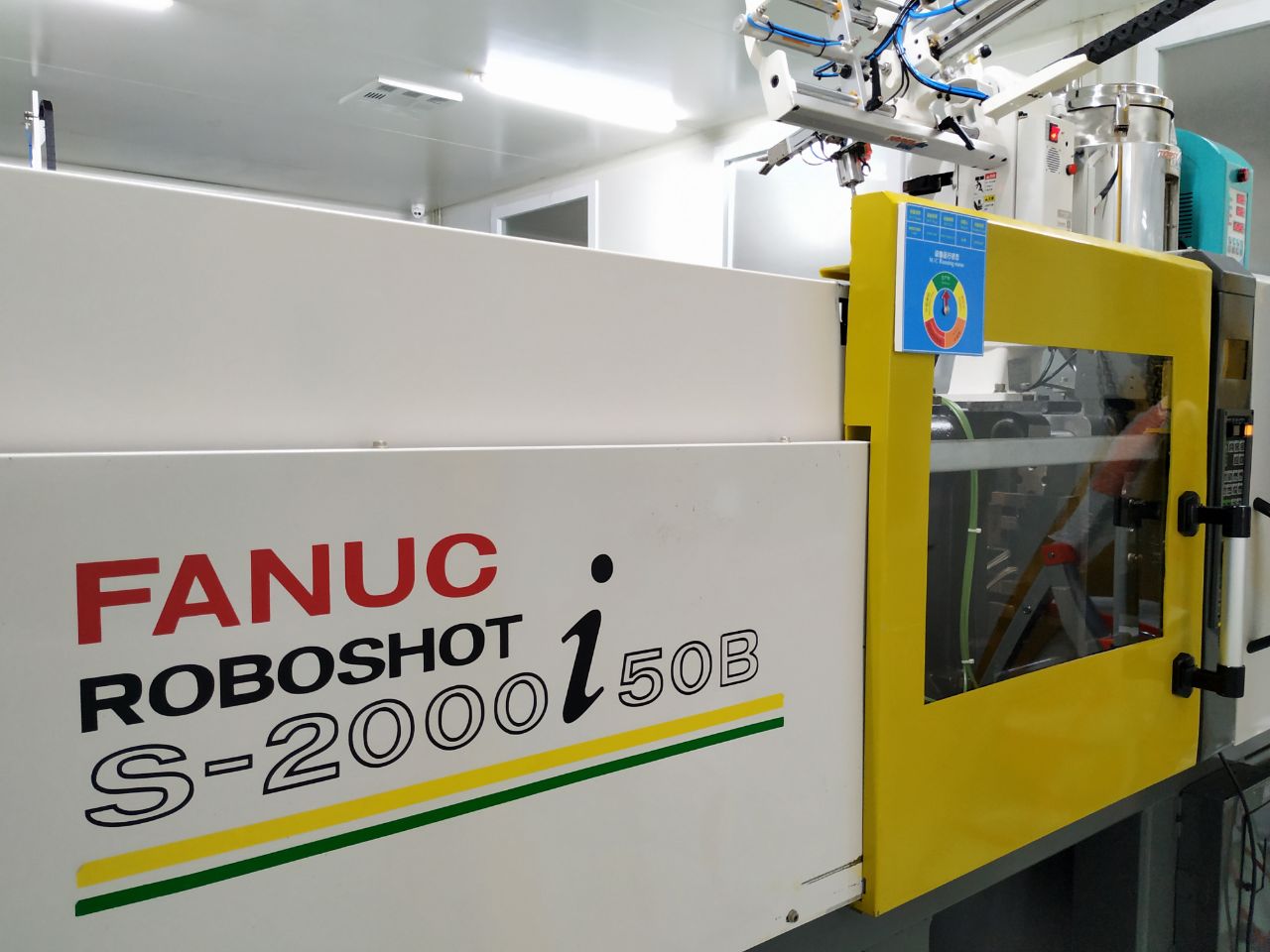

Production process:Injection molding plastic parts.

AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding

AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding

AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding

AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding

Packaging:

AR Coating Diameter 16.0mm Aspheric Optical Lens Precision Injection Molding
